Multifunctional Battery Cabinet Supporting Unbalanced Load And VPP Applications

Name: Multifunctional Battery Cabinet Supporting Unbalanced Load And VPP Applications
Brand: Shenzhen First Tech Co., Ltd.
SKU: ENERARK2.0-M
Price: 341,112.00 USD
Availability: InStock

Детали продукта

Место происхождения: КИТАЙ

Фирменное наименование: 1stess

Сертификация: LVD

Номер модели: ENERARK2.0-M

Документ: Specification EnerArk 2.0 -...ld.pdf

Условия оплаты & доставки

Количество мин заказа: 1 кусок

Цена: negotiable

Упаковывая детали: Контейнер

Время доставки: 45-60 дней

Поставка способности: 10 контейнеров в месяц

Получите самую лучшую цену

Контакт теперь

Спецификации

Описание

Спецификации

Выделить:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              industrial battery storage cabinet, battery cabinet for unbalanced load, VPP battery storage system


Рабочая температура:	-20 ° C до 50 ° C.	сертификаты:	IEC, UN, UL
Тип батареи:	LifePo4	ИС защита:	IP55
Установка:	В помещении или на открытом воздухе	Приложение:	Промышленная и коммерческая
Гарантия:	5 лет	Емкость:	107,52KWH-125,44KWH

Рабочая температура:	-20 ° C до 50 ° C.
сертификаты:	IEC, UN, UL
Тип батареи:	LifePo4
ИС защита:	IP55
Установка:	В помещении или на открытом воздухе
Приложение:	Промышленная и коммерческая
Гарантия:	5 лет
Емкость:	107,52KWH-125,44KWH

Описание

Multifunctional Battery Cabinet Supporting Unbalanced Load And VPP Applications

Product Features

Plug-and-Play for ready to use
All-in-One integrated modular design
DC coupled for solar accessing
Unbalanced loads operation
Parallel operation up to 60 Nos
Virtual Power Plant (VPP) enabled
Auxiliary grid service application
Complete certificate: CE (IEC 61000,IEC62619,IEC62477),UL,G99, UN3480, UN38.3

Technical Specifications

Parameter	EnerArk2.0-NBN-P50	EnerArk2.0-NBN-P100
DC side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC off-grid side parameters
Load type	3P4W
Rated output power	50kW	100kW
Rated output voltage	AC400V±1%
Rated output frequency	50Hz
Rated current	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (WHD)	1900mm2100mm1330mm
Packing size(WHD)	2100mm2244mm1500mm
Maximum weight	2500kg
Degree of protection	IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95%(non-condensing)
Operating temperature*	-20℃~50℃
Altitude**	<2000m
Noise level	≤75dB
Communication interface	RS485,Ethernet
Communication protocol	Modbus RTU,Modbus TCP/IP
Product standard warranty	5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V
Number of MPPTs	1/1/2/2
Number of PV inputs	1/1/2/2
Maximum input current	100A/200A/300A/400A
Certifications	CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A

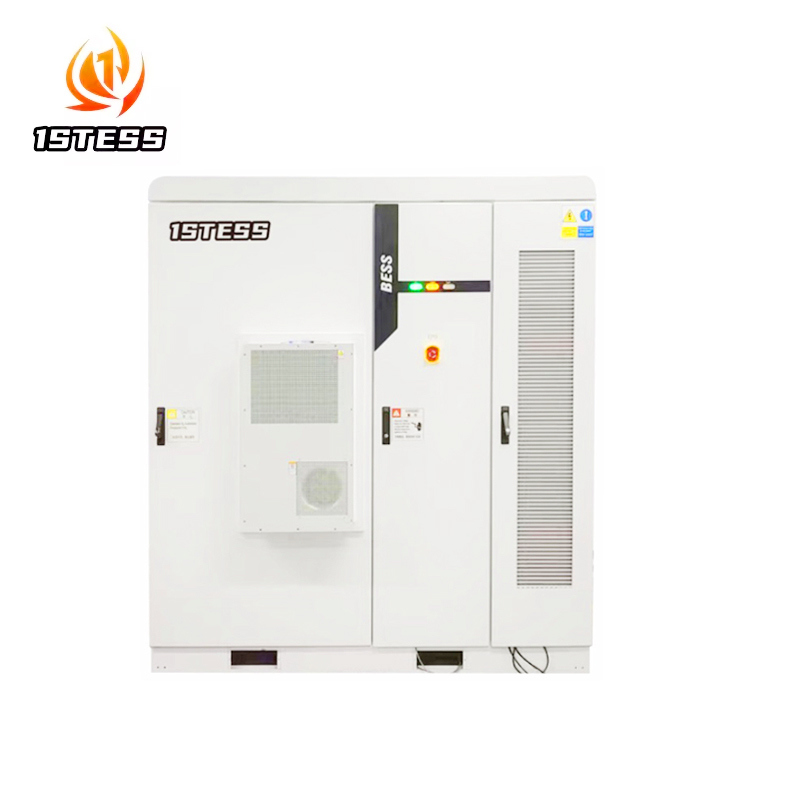

Product Images

Regional Advantages

South Korea

High-power density and compact design ideal for dense urban and industrial areas
Supports fast response for grid stabilization and ancillary services
Compatible with Korean smart grid and VPP initiatives
Safe and reliable with multiple international certifications
Ideal for high-tech manufacturing and data center backup
Easy to integrate with existing solar and energy management systems
Long lifespan and high efficiency reduce total cost of ownership
Low harmonic distortion ensures power quality for sensitive electronics

Thailand

Optimized for high heat and humidity, ensuring year-round reliability
Supports solar and biomass energy systems for agricultural and industrial use
Reduces grid dependency in areas with unstable power supply
Easy to install and maintain, ideal for rural and island communities
Certified under IEC and UN standards, ensuring safety and compliance
Scalable for large resorts, factories, and EV charging networks
Cloud monitoring enables efficient O&M across multiple sites
Cost-effective energy storage for reducing peak demand charges

Vietnam

Ideal for rapid industrialization and solar farm expansion
Supports unbalanced loads common in Vietnamese electrical networks
High cycle life and deep discharge capability suit daily solar cycling
Easy to transport and install across diverse geographic regions
Certified for safe operation in tropical climates
Reduces reliance on coal and diesel generators
Compatible with local grid standards and future smart grid plans
Affordable and scalable, supporting SMEs and large industries alike

United Arab Emirates

Withstands extreme heat and desert conditions with robust cooling and IP55 rating
Supports solar integration for max solar yield in high-irradiation regions
Ideal for megaprojects, smart cities, and off-grid applications
Compliant with UAE and international safety standards
Enables peak shaving and cost savings for large commercial users
Modular design allows easy expansion as energy demand grows
Fire-safe system meets strict UAE construction codes
Cloud-based platform supports smart city and IoT integration

Saudi Arabia

Designed for harsh desert environments with high temperature and dust resistance
Supports solar and hybrid systems aligned with Saudi Vision 2030
Rediesel saving and carbon reduction for industrial and utility applications
Easy to deploy in remote and off-grid locations
Certified under IEC and UL standards, ensuring global compliance
High efficiency and long lifespan ensure low LCOS
Scalable for giga-projects and industrial zones
VPP-ready for future energy market participation

Turkey
