AC/DC Coupling Industrial Commercial ESS with Fire Safety Certification 800kW Output

Name: AC/DC Coupling Industrial Commercial ESS with Fire Safety Certification 800kW Output
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Детали продукта

Место происхождения: КИТАЙ

Фирменное наименование: 1stess

Сертификация: 1

Номер модели: EnerCube

Документ: Specification EnerCube3.0-F...ch.pdf

Условия оплаты & доставки

Количество мин заказа: 1

Цена: negotiable

Упаковывая детали: Контейнер

Время доставки: 60-90 дней

Условия оплаты: L/C, T/T.

Поставка способности: 10 контейнеров в месяц

Получите самую лучшую цену

Контакт теперь

Спецификации

Описание

Спецификации

Выделить:
                                                                                                                                                                                                                                                                                                                                                                                                      AC DC coupling energy storage system, industrial commercial ESS with fire safety, containerized battery storage 800kW output


Система мониторинга:	Дистанционное наблюдение и управление	Диапазон напряжения:	400-800 В.
Размер контейнера:	20 футов	Гарантия:	5 лет
Приложение:	Стабилизация силовой сетки и пиковое бритье	Емкость батареи:	Договоренно

Система мониторинга:	Дистанционное наблюдение и управление
Диапазон напряжения:	400-800 В.
Размер контейнера:	20 футов
Гарантия:	5 лет
Приложение:	Стабилизация силовой сетки и пиковое бритье
Емкость батареи:	Договоренно

Описание

AC/DC Coupling Industrial Commercial ESS with Fire Safety Certification 800kW Output

Product Features

Modular design
All-in-One design
Supports AC and DC coupling
Standard 20HQ container
Classification society certification
7*24 hours monitoring
Online assisted O&M

Product Parameters

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC side parameters
Cell type & capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC side parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General parameters
Isolation transformer	No
Protection level	Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system	FAS & FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105

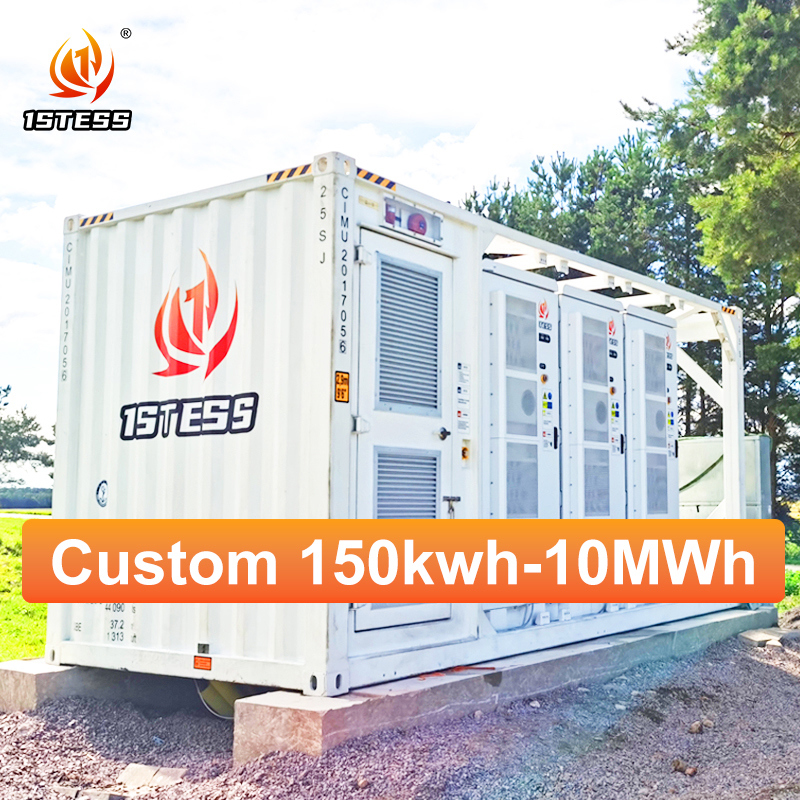

Product Images

Core Advantages & Selling Points

✅ Simplified Deployment & Operations

Pre-integrated Plug-and-Play Design: Factory-assembled within standardized shipping containers, reducing on-site installation time by up to 70%.
Space-Efficient Transport: Optimized dimensions (20HQ container) enable global shipping and easy hoisting/lifting.
Modular Scalability: Expand capacity seamlessly from 860kWh to 1720kWh to match evolving energy needs.

⚡ High-Performance Energy Management

Dual AC/DC Coupling: Integrates effortlessly with solar arrays, wind turbines, diesel generators, or grid connections.
Industrial-Grade Output: Delivers 400kW–800kW rated power with low harmonic distortion (<3%) and overload resilience (110% for 10 mins).
Efficient Bidirectional Flow: Optimizes charging/discharging cycles for maximum energy utilization.
